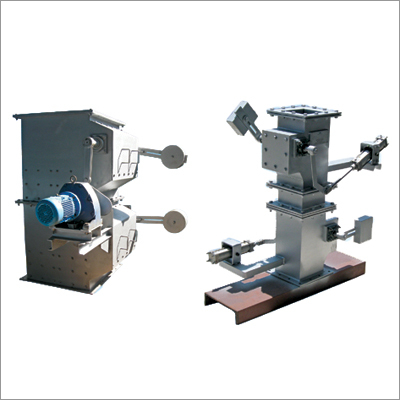

Shaft & Lever Mechanism
Double Pendulum Valve Shaft & Lever Mechanism Manufacturer in India – OP Engineering Group
The Double Pendulum Valve Shaft & Lever Mechanism is a critical mechanical assembly that ensures the synchronized movement of the upper and lower flaps (pendulums) in a double pendulum valve. It plays a vital role in controlling material flow while maintaining an effective air seal in high-temperature and dust-prone industrial environments. OP Engineering Group is a trusted manufacturer of Double Pendulum Valve Shaft & Lever Mechanism in India, delivering precision-engineered, heavy-duty solutions for reliable and continuous operation.
Our shaft and lever assemblies are designed for systems ranging from 50 TPD, 100 TPD, 200 TPD, 350 TPD, 500 TPD up to 900 TPD, making them suitable for rotary kilns, rotary dryers, and bulk material handling applications.
Function of Shaft & Lever Mechanism
The shaft & lever mechanism is responsible for transferring motion to the upper and lower flaps, enabling their alternate opening and closing. It ensures proper timing, alignment, and smooth movement of the pendulum system.
A high-quality Double Pendulum Valve Shaft & Lever Mechanism in India ensures:
- Accurate and synchronized flap movement
- Smooth opening and closing action
- Efficient control of material flow
- Maintenance of airtight sealing
- Stable and reliable valve operation
Working Principle of Shaft & Lever Mechanism
The shaft acts as the central rotating element connected to the flaps, while the lever mechanism controls its movement through manual, pneumatic, or gravity-based operation.
During operation:
- The shaft rotates to open the upper flap for material entry
- The lever system controls the timing of flap movement
- After filling, the shaft rotates to close the upper flap
- The lower flap opens for discharge through the same mechanism
- The cycle repeats continuously
This mechanism ensures:
- Continuous and controlled material flow
- Minimal air leakage between system sections
- Proper synchronization of both flaps
- Efficient operation in high-temperature conditions
Whether used in a 50 TPD plant in India or a 900 TPD large industrial setup, the shaft and lever mechanism is essential for proper valve functioning.
Design & Technical Specifications
At OP Engineering Group, every Double Pendulum Valve Shaft & Lever Mechanism in India is designed for strength, precision, and durability:
- Capacity Compatibility: 50 TPD to 900 TPD
- Material: High-grade Alloy Steel / Carbon Steel
- Shaft Design: Precision-machined for accurate rotation
- Lever Type: Heavy-duty fabricated lever arms
- Bearings: Supported with bearing housing for smooth rotation
- Surface Treatment: Anti-corrosion coating
- Operation: Manual / Pneumatic / Customized mechanism
- Load Handling: Designed for heavy-duty industrial loads
Manufacturing Process & Quality Control
The manufacturing of Double Pendulum Valve Shaft & Lever Mechanism follows strict industrial standards:
- Selection of high-strength raw materials
- Machining of shaft for precision dimensions
- Fabrication of lever arms and linkages
- Heat treatment for enhanced strength and durability
- Assembly of shaft, lever, and connecting components
- Alignment and functional testing
- Final inspection before dispatch
Each Double Pendulum Valve Shaft & Lever Mechanism in India is tested to ensure smooth operation and long service life.
Key Benefits of High-Quality Shaft & Lever Mechanism
Using OP Engineering Group’s Shaft & Lever System provides several advantages:
- Smooth and reliable flap operation
- Accurate synchronization of valve components
- High resistance to wear and mechanical stress
- Long operational life
- Reduced maintenance and downtime
- Consistent performance in continuous processes
Industrial Applications
Our Double Pendulum Valve Shaft & Lever Mechanism in India is widely used in:
- Cement Plants
- Sponge Iron / DRI Kilns
- Rotary Kiln Systems
- Rotary Dryer Systems
- Mineral Processing Industries
- Chemical Processing Units
- Fertilizer Plants
- Dust Collection & Material Handling Systems
Supply Network Across India
OP Engineering Group supplies Double Pendulum Valve Shaft & Lever Mechanism in India across major industrial cities:
Delhi, Mumbai, Pune, Ahmedabad, Surat, Vadodara, Jaipur, Chennai, Coimbatore, Bengaluru, Hyderabad, Kolkata, Durgapur, Bhubaneswar, Raipur, Nagpur, Indore, Kanpur, Lucknow, Patna
Global Export Reach
We also export Double Pendulum Valve Shaft & Lever Mechanism to international markets including:
Uganda, Kenya, Ghana, South Africa, Nigeria, Brazil, Mexico, United States, Canada, Germany, France, Italy, Spain, Thailand, Indonesia, Philippines, Australia, New Zealand, Bangladesh, Myanmar, UAE
Why Choose OP Engineering Group?
- Trusted manufacturer of Double Pendulum Valve Shaft & Lever Mechanism in India
- Custom-built solutions for 50 TPD to 900 TPD plants
- High-strength and precision-machined components
- Smooth and synchronized operation
- Strict quality control and testing
- Reliable delivery and technical support
Conclusion
The Double Pendulum Valve Shaft & Lever Mechanism is a vital assembly that controls the synchronized movement of valve flaps, ensuring efficient material flow and airtight sealing. Its quality directly impacts the performance, reliability, and efficiency of the entire system.
With advanced engineering expertise, OP Engineering Group delivers high-performance Double Pendulum Valve Shaft & Lever Mechanism in India suitable for 50 TPD to 900 TPD industrial applications.
For durable, efficient, and precision-engineered solutions, OP Engineering Group is your trusted industrial partner.
