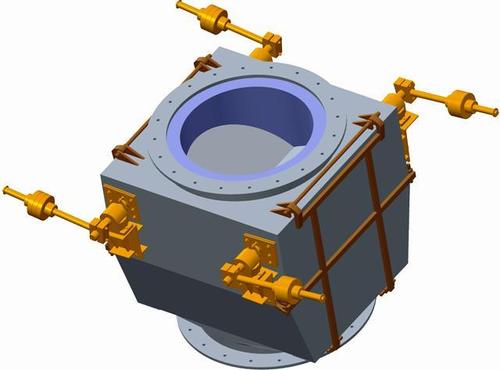

Double Pendulum Valve Actuator / Drive Mechanism Manufacturer in India – OP Engineering Group

The Double Pendulum Valve Actuator / Drive Mechanism is a vital system that controls the movement of the valve flaps (pendulums), ensuring synchronized opening and closing for efficient material flow and airtight sealing. It plays a key role in automating and stabilizing the operation of double pendulum valves in high-temperature and dust-intensive industrial environments. OP Engineering Group is a trusted manufacturer of Double Pendulum Valve Actuator / Drive Mechanism in India, offering robust, precision-engineered solutions for reliable and continuous performance.

Our actuator systems are designed for applications ranging from 50 TPD, 100 TPD, 200 TPD, 350 TPD, 500 TPD up to 900 TPD, making them suitable for rotary kilns, rotary dryers, and bulk material handling systems.

Function of Actuator / Drive Mechanism

The actuator / drive mechanism is responsible for controlling the motion of the shaft and lever assembly, which in turn operates the upper and lower flaps of the valve.

A high-quality Double Pendulum Valve Actuator in India ensures:

• Controlled and synchronized flap movement
• Smooth opening and closing cycles
• Consistent material flow
• Effective air sealing during operation
• Reduced manual intervention

Working Principle of Actuator System

The Double Pendulum Valve Drive Mechanism operates using mechanical, pneumatic, or motorized systems depending on the application requirement.

During operation:

• The actuator provides force to rotate the shaft
• The shaft movement is transferred to the flaps via lever mechanism
• The upper and lower flaps open and close alternately
• The system maintains proper timing and synchronization

This results in:

• Continuous and controlled material discharge
• Minimal air leakage
• Stable process conditions
• Efficient operation in high-temperature environments

Whether used in a 50 TPD plant in India or a 900 TPD large industrial setup, the actuator system ensures reliable automation.

Types of Actuator / Drive Mechanisms

At OP Engineering Group, we provide various types of Double Pendulum Valve Actuators in India based on operational needs:

• Pneumatic Actuator System
• Electric Motorized Drive
• Hydraulic Actuator System
• Manual Lever-Operated Mechanism
• Gravity-Based Mechanism

Each type is selected based on plant automation level, load requirement, and operating conditions.

Design & Technical Specifications

Every Double Pendulum Valve Actuator / Drive Mechanism in India is designed with precision and durability:

• Capacity Compatibility: 50 TPD to 900 TPD
• Operation Type: Pneumatic / Electric / Hydraulic / Manual
• Material: High-strength steel components
• Control System: Automated or semi-automated
• Torque Capacity: Designed for heavy-duty load handling
• Speed Control: Adjustable operation speed
• Mounting: Integrated with shaft and lever system
• Protection: Corrosion-resistant coating

Manufacturing Process & Quality Control

The manufacturing of Double Pendulum Valve Actuator / Drive Mechanism follows strict industrial standards:

1. Design based on operational requirements
2. Selection of high-quality components
3. Fabrication of actuator and linkage systems
4. Assembly with shaft and lever mechanism
5. Integration of control system (if applicable)
6. Functional testing and synchronization checks
7. Final inspection before dispatch

Each Double Pendulum Valve Actuator in India is tested for performance, durability, and reliability.

Key Benefits of High-Quality Actuator System

Using OP Engineering Group’s Actuator / Drive Mechanism offers several advantages:

• Smooth and automated valve operation
• Accurate synchronization of flaps
• Reduced manual effort and operational errors
• Improved process efficiency
• Long service life
• Low maintenance requirements

Industrial Applications

Our Double Pendulum Valve Actuator / Drive Mechanism in India is widely used in:

• Cement Plants
• Sponge Iron / DRI Kilns
• Rotary Kiln Systems
• Rotary Dryer Systems
• Mineral Processing Industries
• Chemical Processing Units
• Fertilizer Plants
• Dust Collection & Material Handling Systems

Supply Network Across India

OP Engineering Group supplies Double Pendulum Valve Actuator / Drive Mechanism in India across major industrial cities:

Delhi, Mumbai, Pune, Ahmedabad, Surat, Vadodara, Jaipur, Chennai, Coimbatore, Bengaluru, Hyderabad, Kolkata, Durgapur, Bhubaneswar, Raipur, Nagpur, Indore, Kanpur, Lucknow, Patna

Global Export Reach

We also export Double Pendulum Valve Actuator / Drive Mechanism to international markets including:

Uganda, Kenya, Ghana, South Africa, Nigeria, Brazil, Mexico, United States, Canada, Germany, France, Italy, Spain, Thailand, Indonesia, Philippines, Australia, New Zealand, Bangladesh, Myanmar, UAE

Why Choose OP Engineering Group?

• Trusted manufacturer of Double Pendulum Valve Actuator / Drive Mechanism in India
• Custom-built solutions for 50 TPD to 900 TPD plants
• Advanced automation and control systems
• Heavy-duty and durable construction
• Strict quality testing and inspection
• Reliable delivery and technical support

Conclusion

The Double Pendulum Valve Actuator / Drive Mechanism is a key system that ensures smooth, synchronized, and efficient operation of valve flaps. Its performance directly impacts material flow control, air sealing, and overall process efficiency.

With advanced engineering expertise, OP Engineering Group delivers high-performance Double Pendulum Valve Actuator / Drive Mechanism in India suitable for 50 TPD to 900 TPD industrial applications.

For reliable, efficient, and automation-ready solutions, OP Engineering Group is your trusted industrial partner.
